M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out

Name: M25 5Pin StraightThrough Screw Lock IP68 Waterproof Connector 1 In 2 Out
Brand: Cablein
Price: 1 USD

Brand Name : Cablein

Certification : CE, ROHS, TUV , ETL

Place of Origin : Shenzhen China

MOQ : 100PCS

Price : The price ranges from $1 to $4 USD per pieces

Payment Terms : T/T,Western Union

Supply Ability : Monthly output: 10,000 sets

Delivery Time : 5-8 Working Days

Packaging Details : High Quality export carton

Operating Temperature : -25℃-+80℃

Ip Rating : IP67/IP68/IP69

Certifications : UL/CE/RoHS

Connecting Mode : plug/unplug

Mating Style : Screw

Contact Pin Material : Gold-Plated Brass

Pin Number : 2-5 needle

Cable Fixing : OD=5mm--14mm

Contact Now

M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out

Specifications

Rating: IP67/IP68

Installation Type: Wire-to-Wire

Connection Type: Screw Locking

Pin: 5

Waterproof Ring: 5-9mm 9-12mm 10-14mm

Applicable Wire Gauge: 0.5mm²-2.5mm²

Material: PA66

Datasheet

Parameter	Specification
Product Name	M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out
Wiring Range	0.5mm² -2.5 mm²
Rated Current	24A
Operating Voltage	0.4KV
Ingress Protection (IP) Rating	IP67/IP68
Ambient Temperature	-40℃ ~ +105℃
Cable Diameter (OD)	5-9mm 9-12mm 10-14mm

Advantages

1-in 2-Out Compact Design

Enables efficient power or signal distribution from a single source, simplifying wiring and saving space.
IP68 Rated for Harsh Environments

Fully waterproof and dustproof, with a robust construction that operates reliably from -40°C to +100°C.
Secure Screw Lock Mechanism

Ensures a vibration-resistant, stable connection that won't loosen, preventing downtime.
Straight-Through for Easy Wiring

Features an accessible, straight-through design that allows for quick and tool-friendly installation.

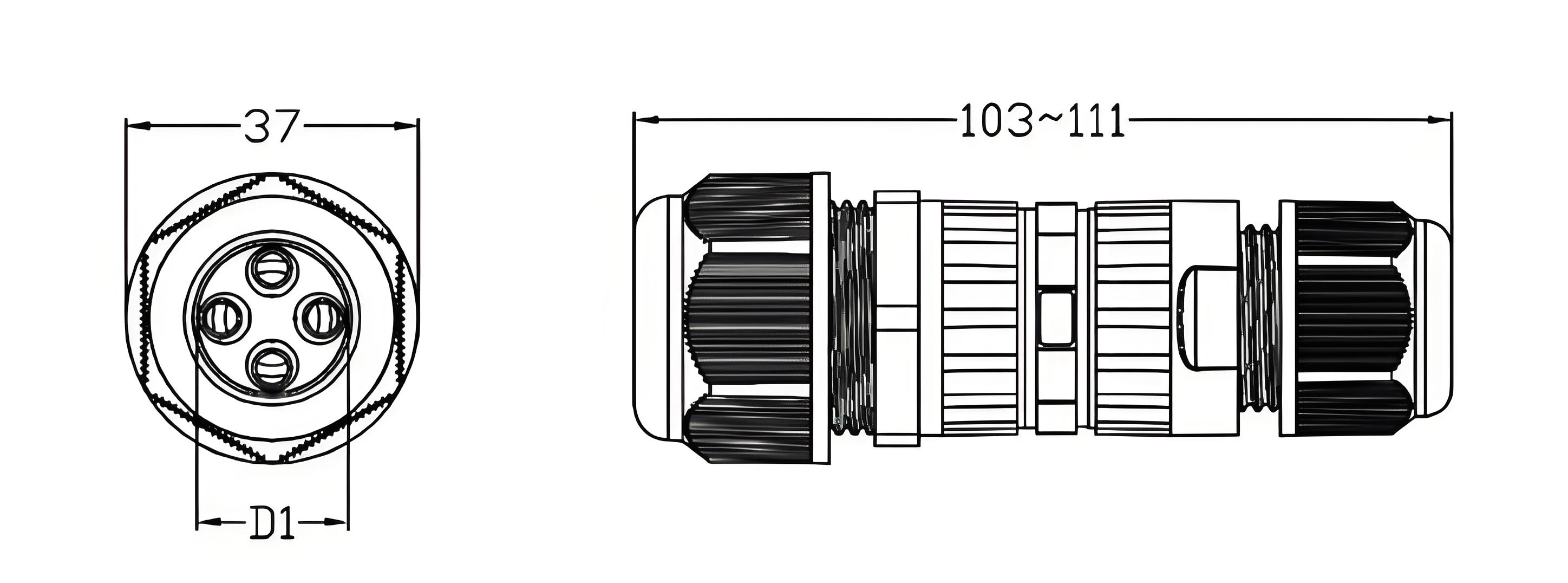

Product Images

M25 5-Pin Straight-Through Screw Lock IP68 Waterproof Connector 1 In 2 Out

FAQ

Question: What is the primary application of the 1-in 2-out design?

This design is ideal for daisy-chaining or power/signal splitting. You can efficiently connect a single power source to two separate devices, such as linking two sensors, powering a main unit and an auxiliary light, or simplifying wiring in control cabinets, which significantly reduces installation time and cost.

Question: How reliable is the IP68 waterproof rating in real-world conditions?

Our IP68 rating is rigorously tested. It guarantees complete protection against dust ingress and can be continuously submerged in water over 1 meter deep for extended periods. This makes it perfectly suited for harsh environments like outdoor installations, washdown areas in industrial settings, and exposed machinery.

Question: Is the screw locking mechanism vibration-proof and easy to install?

Yes. The threaded screw-lock mechanism provides a secure, vibration-resistant connection that prevents accidental disconnection in high-motion environments. The straight-through design also allows for straightforward wiring, making installation tool-friendly and quick.
